How to bypass engine brake switch.

posted by Rocco on Sat, 09/16/2017 - 18:39
Forums:
How To

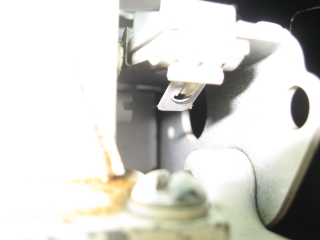

If you have disconnected the engine brake and still your engine won't shut off, there's an easy fix. Behind the throttle plate, above the gas tank there's a switch installed, unused. (see pic.) re-route the switch wire from the brake to that switch, or just run a wire from the coil to that switch behind the throttle bracket.

  • "> ">
Kopfjaeger's picture

On Sun, 09/17/2017 - 20:24

Rocco,
Awesome! Thanks for posting. I'll check the throttle plate to see if my NOS engine is similar.

By Kopfjaeger
  • "> ">
Kopfjaeger's picture

On Sat, 09/23/2017 - 17:44

Put the NOS 4hp Sensation engine on this weekend and finally put her all together! She's ready for action tomorrow! I've missed her!

Rocco, the kill switch was also on my throttle plate! Thanks for the tip!

Joe

By Kopfjaeger
  • "> ">

On Sun, 09/24/2017 - 08:12

No problem. I'll call you soon! I usually take the brake off too, weld a portion of an old shroud to the back of the shroud to cover the missing metal, bondo/sand it smooth and repaint.

By Rocco
  • "> ">
Kopfjaeger's picture

On Sun, 09/24/2017 - 08:55

Yup, I too pulled the brake off. I suppose I should have patched in and blended the cover. The time to do that was when I stripped the old paint off.

Joe

By Kopfjaeger
  • "> ">
